DELTAsert®

Specification

  • Overview

    • Design recommendations DELTAsert®
    • Design recommendations DELTAsert® P

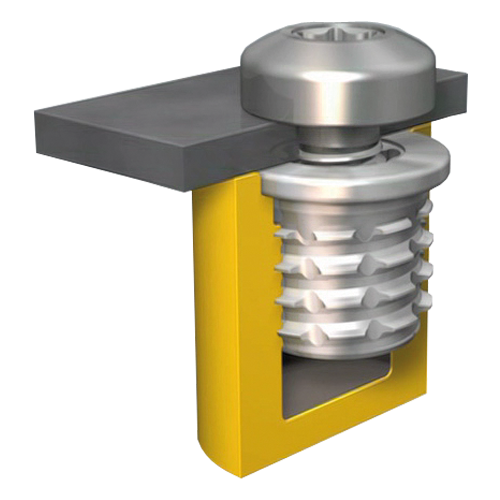

    • DELTAsert® made of aluminium for thermoplastics and thermosets (Size M6)

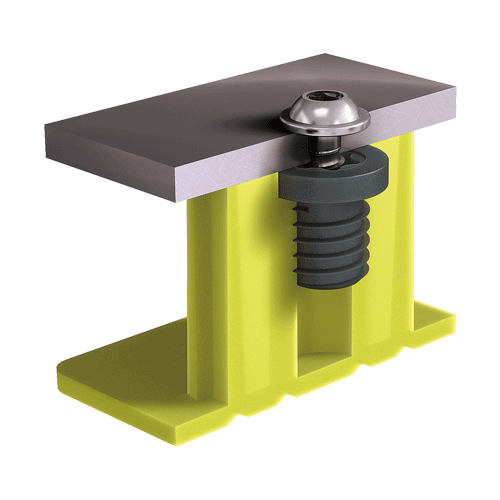

    • DELTAsert® made of plastic for soft thermoplastics (for DELTA PT® 45 & 50) other dimensions on request
    • Easy and reliable direct assembly; no complex setting procedure necessary
    • Low weight due to the use of aluminium instead of brass
    • High pull-out force due to large flank coverage
    • Very high loosening torque due to self-tapping DELTA PT® thread
