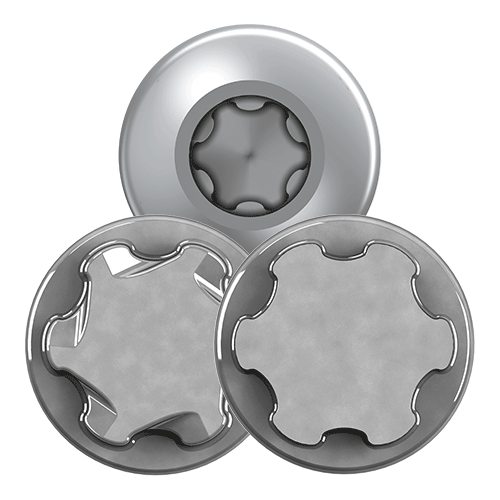

TORX® / TORX PLUS®

Specification

  • Overview

    • Standard internal recess sizes: T3 - T40, 3IP - 40IP
    • Suitable for fasteners with major thread diameter 1.0 bis 10.0 mm
    • efficient transfer of high torques
    • straight side walls eliminates camout effect
    • significantly reduced bit usage and assembly line downtime from bit changes
    • available as internal recess and external drive system
    • available as Tamper Resistant drive system for restricted access
