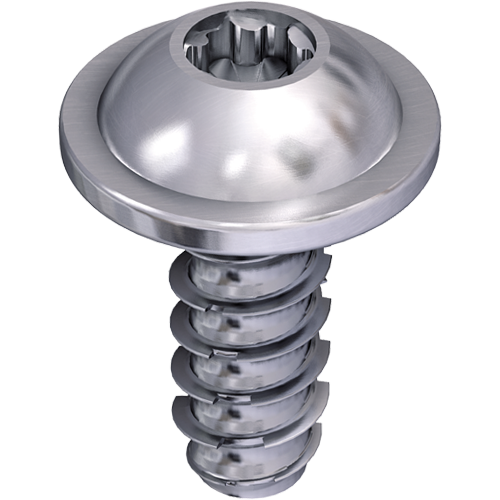

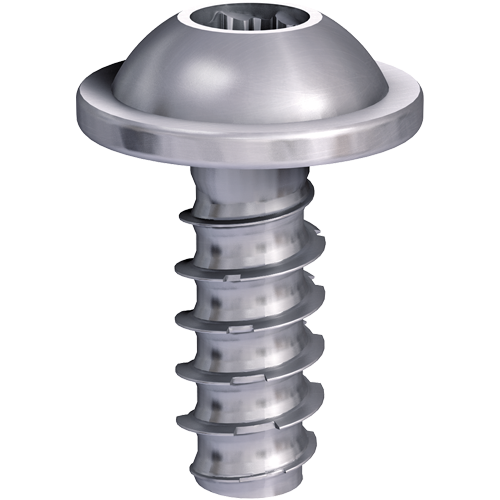

DELTA PT® DS

Specification

  • Overview

    • Design recommendations
    • Standard length: approx. 2 to 10 x nominal diameter (other on request)
    • Safe and reliable direct assembly into thermosets
    • Saving potential through standardisation: One type of screw for thermoplastic and thermoset
    • Easy assembly due to good application of the screw
    • Smaller hole depth possible compared to screws with a milled cutting edge
    • Larger flank coverage at the same insertion depth compared to screws with a milled cutting edge
